Flat Adjustable Fittings

Standoff, 50 mm Back Spacer

SWPF8330A-3A50-PSS

  • 10–21.5 mm glass

SWPF8330A-3A50-PSS

1 of 7Tap to enlarge

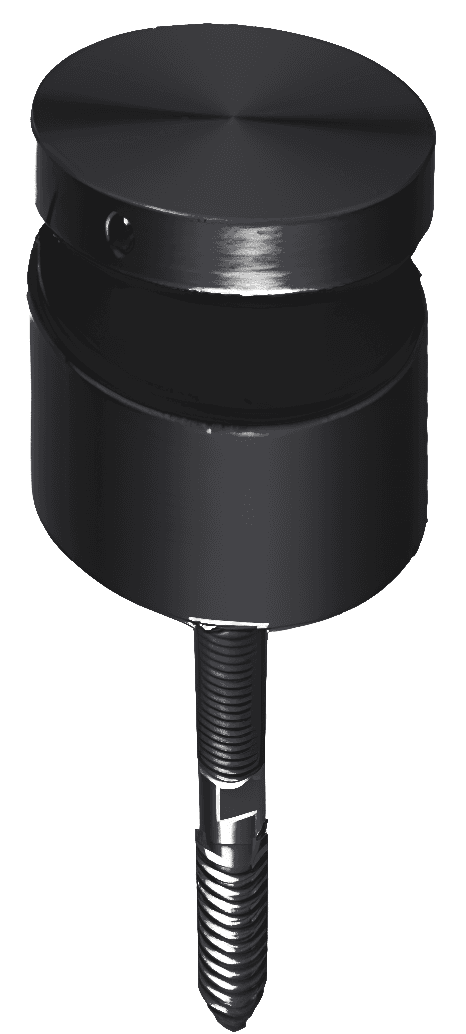

No polished chrome photo yet, so this photo may show another finish. You are ordering Polished chrome.

Download cut-out template (PDF)

Finish

Views

£21.00

inc. VAT · Polished chrome

Sample

About this part

Overview

for 10 to 21.5 mm glass

Fits 10 to 21.5 mm glass

Standoff fixing for a frameless glass panel, such as a balustrade infill or signage panel, holding it clear of the wall or post it is fixed to. It has a 50 mm back spacer, which sets the gap between the glass and the mounting surface.

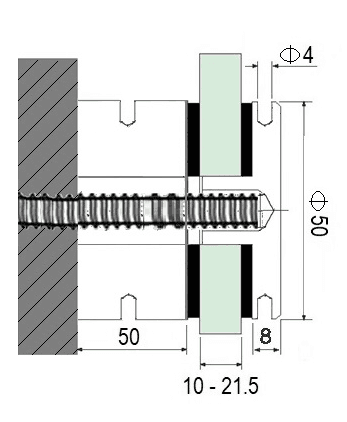

Suitable for glass from 10 mm to 21.5 mm thick. The head is 50 mm in diameter and stands off the wall on a 50 mm back spacer.

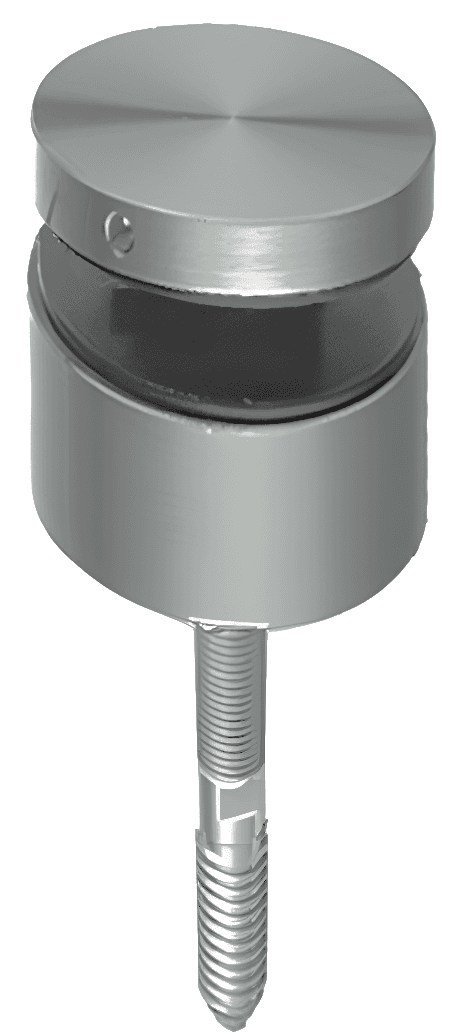

Choose from polished chrome (SWPF8330A-3A50-PSS), satin brushed (SWPF8330A-3A50-SSS) or matte black (SWPF8330A-3A50-MB).

To complete the job: the SWWSHR8330 (washer set for the standoffs), the SWSPNR8330 (key to tighten them) and the SWPF8330A-3A110W (M10 threaded bar to fix them). It is on page 93 of our catalogue.
